3.3 V Level Shifter for PRESTO


HPR3V3 is an optional accessory to the PRESTO programmer for programming of stand-alone 3.3 V devices (as for example DataFlash Memories). The PRESTO programmer can supply a programmed device with 5 V. However, some devices require 3.3 V supply voltage and 3.3 V logic levels on their pins. In such case, the HPR3V3 level shifter or an external 3.3 V power supply have to be used.


Note: The HPR3V3 pins are unidirectional, so this level shifter can be used for AVR devices, SPI Flash memories or MSP430 devices without SBW interface, but it is not intended for PIC devices and MSP430 devices with SBW interface.


Download

HPR3V3 User's Guide (PDF format, 223 KB)


Prices

→ HPR3V3 price


Related products

PRESTO - very fast and flexible USB In-Circuit Serial programmer

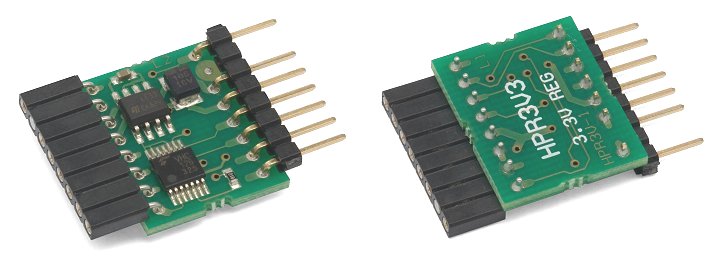

[HPR3V3]

 Larger image


→ More images
